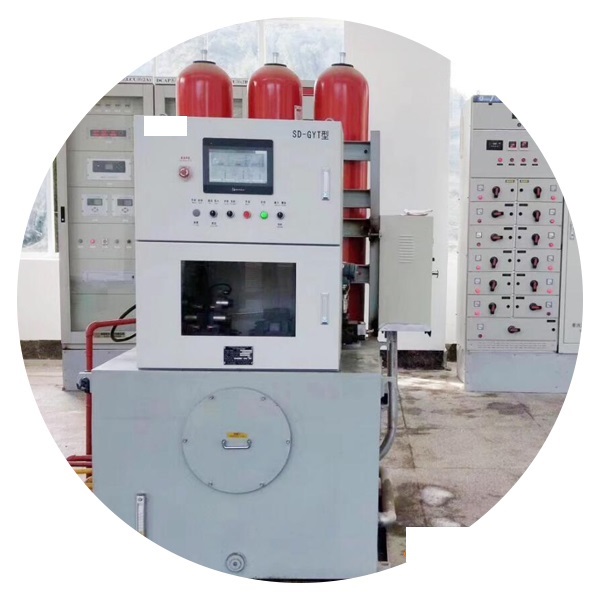

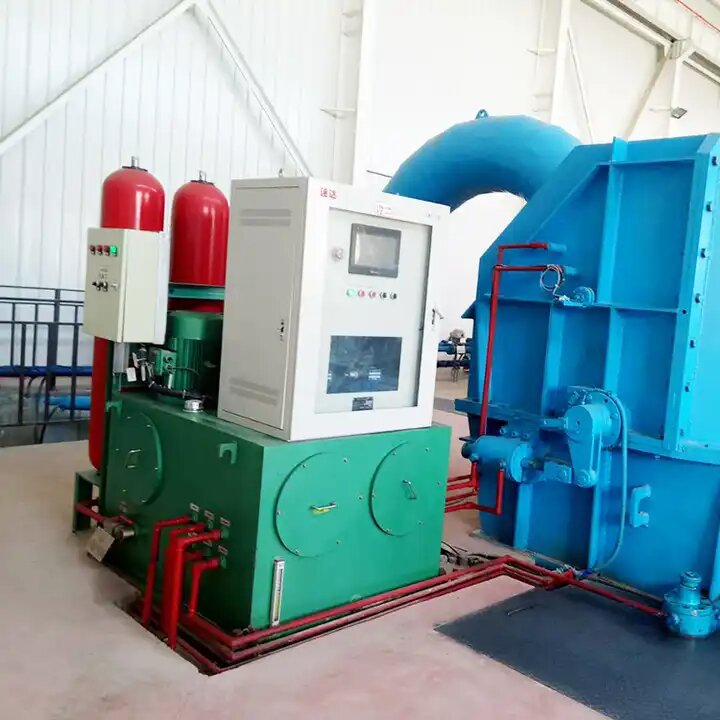

Microcomputer governor adopts PLC as the central regulator .PLC is the use of high-performance Japanese mitsubishi FX series as the main hardware. It uses the touch graphic operation terminal as the man-machine interface,

• AC power supply: ～220V±10%，50HZ
• DC power supply: 220V±10%
• Switching power supply voltage :+24V
• Accuracy: + / – 0.05%

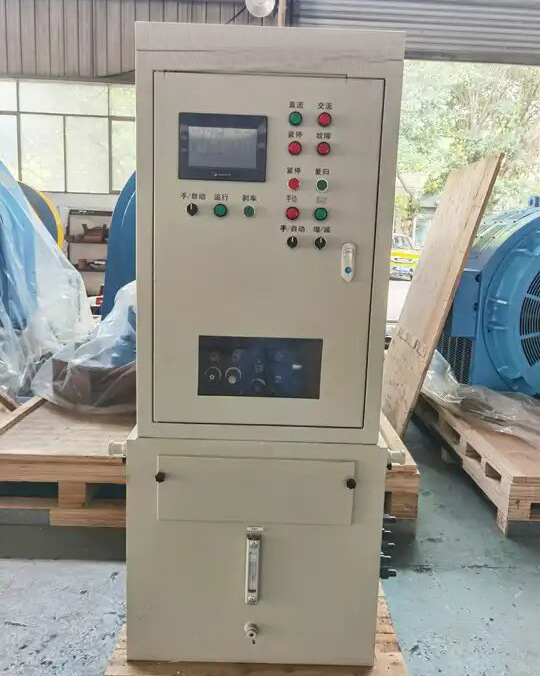

Fully Automated Integrated Microcomputer Control Panel For Hydro Power Plant

• Device Working Power Supply: 220V±30%
• Protect Current Secondary Input Range: 0~50A
• Measure Current Secondary Input Range ：0~5A
• Voltage Detection Range: 1.5~550V

Easy to use: single-phase power supply, simple wiring; original ball-shaped protruding structure to make observation more convenient; no refueling, no spot inspection, waterproof and rust-proof, installation at any angle.

• Nominal diameter: DN100～3000mm
• Nominal pressure: PN 0.6~3.5MPa
• Test pressure: seal test / air seal test
• Seal test pressure: 0.66~2.56

High reliability The electrical structure is reasonable and scientific, and the indicators meet the national standard of GB/6450 dry-type power transformers. Environmental protection features. It has high temperature resistance, moisture resistance, high stability, chemical compatibility, low temperature resistance, radiation resistance and non-toxicity.

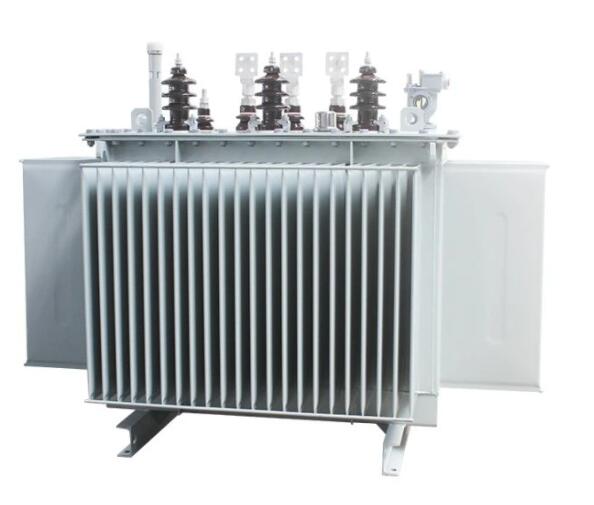

• Rated capacity: 300-2500KVA
• Type: Oil-immersed transformer
• Rated voltage: 20KV
• Rated voltage ratio: 20KV/0.4KV

HQN type rotary grille cleaning machine adopts built-in type to deal with the problem of ultra-long (the width of the dirt exceeds the width of the hole) and ultra-high (the height of the dirt exceeds the height of the reduction frame) of the conventional cleaning machine transmission structure. The motor is hidden inside the frame, which greatly improves the outdoor protection ability of the motor, and is suitable for hydropower stations and pumping stations with a lot of garbage.

• Entrance width: 2m-8.5m
• Installation angle: 60°-90°
• Center distance of trash rack: 20mm-200mm
• Decontamination capacity: 20t/h-50t/h

HQN type rotary grille cleaning machine adopts built-in type to deal with the problem of ultra-long (the width of the dirt exceeds the width of the hole) and ultra-high (the height of the dirt exceeds the height of the reduction frame) of the conventional cleaning machine transmission structure. The motor is hidden inside the frame, which greatly improves the outdoor protection ability of the motor, and is suitable for hydropower stations and pumping stations with a lot of garbage.

• Entrance width: 2m-8.5m
• Installation angle: 60°-90°
• Center distance of trash rack: 20mm-200mm
• Decontamination capacity: 20t/h-50t/h

It is a complete power distribution device for 3~12kV three-phase AC 50HZ single bus and single bus section system. Mainly used in power plants, small and medium-sized generators for power transmission, industrial and mining enterprises, power distribution and secondary substations of electrical systems, power reception, power transmission, and large-scale high-voltage motor starting, etc.

Francis Pelton Turgo and Kaplan Turbine Runner OEM
