Pelton Turbine Manufacturer Your One Stop Pelton Turbine Supplier
Pelton Turbine Generator Manufacturer
Suneco Hydro is a Pelton Turbine generator manufacturer in China and 86% of our products are exported to Europe, the US, Canada, Japan, Indonesia, Malaysia, the Philippines, Australia, Romania, South Africa, and Thailand. We provide customization service of all our mini, small, large hydro turbines. OEM samples of Pelton Turbine can be delivered in 15-25 working days. Other water turbines, Pelton turbines, small hydro turbines, mini-hydro turbines are all in our business scope.
All our Staff works with 20 years experience.
20kw-100kw Pelton turbine generator for grid and off-grid usage
Pelton turbine is the active turbine with the water flow come out from nozzle along the tangent of the turning wheel and strikes on blades, the power therefore being made. It is applicable for the power station with great load change and slight water flow and it is the only one of the impulse turbines that been used for large-scale units
Compact structure, easy to install, very little civil works as Turgo turbine.
Reliable operation, easy to control.
Hydraulic head range of 50-500m.
Efficiency range is usually from 80% to 89%, more better than Turgo tubine, but charger more.
Develop Your Hydro Business with Suneco Pelton Turbine
Suneco Hydro is high-tech hydropower, Pelton Turbine supplier, and hydropower project solution provider since 1990. We mainly supply hydroelectricity power system like pico hydro turbine generator, micro water turbines, Mini hydro turbine generators for our customers far from Grid electricity and need generating electricity from water, also some customers want to build hydropower plant and sell the electricity to local Grid-State.
A customer-made hydroelectric power station solution or home off-grid water turbine generator for personal power need is our strong point, Suneco micro-hydro generator ranging from 200W to 1000 KW for your project.
Contact Us For A Quick Quote
Buying Guide: Pelton Turbine
A turbine converts energy in the form of falling water into rotating shaft power.
The selection of the best turbine for any particular hydro site depends on the site characteristics, the dominant ones being the head and flow available.
The selection also depends on the desired running speed of the generator or other device loading the turbine.
Other considerations such as whether the turbine is expected to produce power under part-flow conditions, also play an important role in the selection.
All turbines have a power-speed characteristic. They will tend to run most efficiently at a particular speed, head, and flow combination.
A turbine’s design speed is largely determined by the head under which it operates.
Turbines can be classified as high-head, medium head or low-head machines.
Turbines are also divided by their principal way of operating and can be either impulse or reaction turbines.

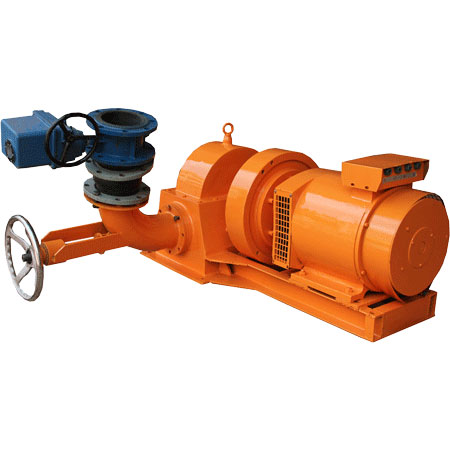

Suneco Micro Pelton Turbine Parameters
CJ237-W-45/1×4.8 Hydro Turbine Performance Data And Supporting Table
Model
Turbine Parameters
Generator Parameters
Water Intake
Design head(m)
Under the design head
Design speed (r/min)
The power of generator
Rated speed(r/min)
Runaway speed(r/min)
Diameter (mm)
Flow rate (m3/s)
The output(kw)
CJ237-W-45/1×4.8
60
0.06
28
637
26
1000
1800
200
70
0.065
35.9
688
40
750
1500
200
80
0.07
43.9
735
40
750
1500
200
90
0.074
51.9
780
55
750
1500
200
100
0.078
59.7
822
55
750
1500
200
110
0.082
69.1
862
75
1000
1800
200
120
0.085
80.2
901
75
1000
1800
200
130
0.089
90.8
937
75
1000
1800
200
140
0.092
102
937
100
1000
2200
200
150
0.095
112
1007
100
1000
2200
200
160
0.098
123
1040
100
1000
2200
200
170
0.0102
134
1073
125
1000
2200
200
180
0.0104
144
1103
125
1000
2200
200
Suneco Pelton turbine
Based on vast field experience, Suneco Hydro offers vertical and horizontal shaft machines equipped with multi-jet collectors for an output up to ~30 MW and with runner diameters up to 4m. We provide horizontal shaft single or double-runner Pelton turbines with one or two jets. These turbines operate economically with the lowest discharges.
RUNNERS Suneco Hydro’r Pelton runners design, with buckets supported by two separate hoops, minimizes stress at bucket fixation, reducing inspection and maintenance costs, and increasing plant availability.
Pelton turbine suit for high head, small flow, and flow changes in large runoff hydropower station;
With the power plant investment is small, compact units structure characteristics;
Has the efficiency changed smoothly,operating a wide range, even in the 15%-20% load is reduced efficiency;
Pelton turbine suit for high head small flow station in mountain area;
A unit construction, simple restrictions without cavitation conditions, the advantages of stable operation, less investment, and construction area.
FAQ
Q1, Which turbine should I choose?
Please tell me the water head, flow rate, frequency, Total power you need, and voltage, on the grid or off-grid operation, we will propose a solution.
Q2, Can your factory provide all the equipment for hydropower generation?
Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems, and more.
Q3, Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement, and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.
Q4, Is your company a trading company or a manufacturer?
We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Guangxi, where China’s water conservancy and hydropower are most developed. Welcome to visit our factory in China.
Q5, What is an acceptable MOQ?
For this product, our acceptable MOQ is 1 set.
Q6, How long is the delivery time?
Delivery times range from 15 days to 6 months depending on the model you are purchasing.
Q7, Does your company have its own independent official website?
Of course, and we can see more information about our company and products on our official website.
