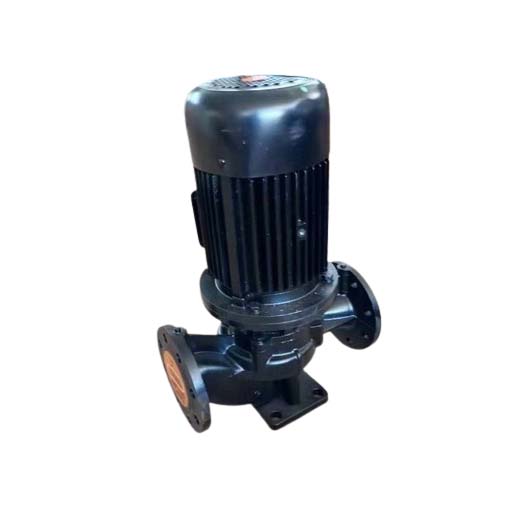

Complete Buying Guide: In-Pipe Water Turbine Generator

An in-pipe water turbine generator is a type of micro-hydro system that captures energy from the flow of water within pipelines, converting it into electrical power.

This technology presents a sustainable solution for generating electricity, particularly in regions with established water distribution networks or irrigation systems.

The concept leverages the kinetic energy of water flowing through pipes, which would otherwise be dissipated as pressure loss or friction.

Size:

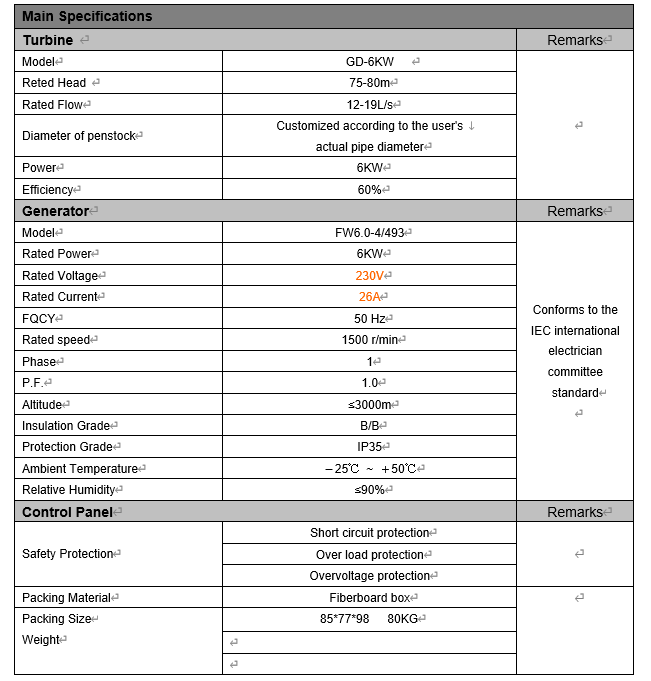

Specifications of 6KW HYDRO TURBINE GENERATORS

Working Principle

The in-pipe water turbine generator operates on principles similar to traditional hydropower turbines, albeit on a smaller scale and within a confined space.

Water flowing through a pipeline exerts pressure and kinetic energy.

By installing a turbine within the pipe, this energy can be harnessed.

The turbine, typically a small axial or cross-flow type, rotates as water passes over its blades.

This rotational energy is transferred to a generator, which converts mechanical energy into electrical energy.

Key Components

1. Turbine: The turbine is the core component that captures the energy of moving water. Different designs, such as axial, cross-flow, or Pelton wheels, can be used depending on the water flow characteristics and pipe dimensions.
2. Generator: Attached to the turbine, the generator converts the mechanical rotation into electrical energy. The generator’s size and type are chosen based on the expected power output.
3. Control System: A control system regulates the turbine’s operation, ensuring optimal performance and protecting against overloads. It can also integrate with the grid or off-grid systems to manage power distribution.
4. Structural Support: This includes the housing and mounting mechanisms necessary to secure the turbine and generator within the pipeline.

Advantages

1. Sustainability: In-pipe water turbine generators produce clean, renewable energy. They reduce reliance on fossil fuels and help lower greenhouse gas emissions.
2. Efficiency: These systems utilize existing infrastructure, such as water distribution networks, making them cost-effective. They do not require large-scale dam construction or significant environmental disruption.
3. Reliability: The consistent flow of water in municipal and industrial pipelines provides a reliable source of energy. This predictability enhances the stability of power generation.
4. Scalability: These turbines can be installed in various sizes and numbers, depending on the specific requirements and the volume of water flow, making them adaptable to different applications.

Applications

1. Municipal Water Systems: Cities with extensive water distribution networks can install in-pipe turbines to generate electricity, offsetting the energy used in water treatment and distribution.
2. Industrial Water Systems: Factories and plants with significant water usage can harness in-pipe turbines to power operations or reduce electricity costs.
3. Irrigation Systems: Agricultural areas with extensive irrigation networks can utilize these systems to power pumps or other equipment, enhancing sustainability.
4. Remote Areas: In regions without access to grid electricity, in-pipe turbines can provide a reliable power source, particularly if there are existing water delivery systems.

Challenges

1. Integration: Retrofitting existing pipelines with turbines can be complex and may require significant modifications.
2. Maintenance: Ensuring the turbine remains free from debris and operates efficiently requires regular maintenance, which can be challenging in inaccessible areas.
3. Cost: Initial installation costs can be high, although they are often offset by long-term savings on energy bills.

Future Prospects

Advancements in materials, turbine design, and control systems are expected to enhance the efficiency and feasibility of in-pipe water turbine generators.

The integration of smart technologies for monitoring and optimization can further boost performance.

As the push for renewable energy sources intensifies, in-pipe water turbine generators represent a promising solution for sustainable and decentralized power generation, particularly in urban and industrial contexts where water flow is abundant and consistent.

In conclusion, in-pipe water turbine generators offer an innovative approach to harnessing renewable energy from existing water infrastructure.

Their ability to provide sustainable, reliable, and cost-effective power makes them an attractive option in the global transition towards greener energy solutions.
