China good quality Small Hydro turbine supplier

What kind of hydropower system we can offer:

1, Francis turbine

Francis turbine is a kind of turbine suited to water heads 20-300meters and with

certain suitable flow.

It could be divided into vertical and horizontal arrangements. Francis turbines have the advantage of high efficiency, small size, and reliable structure.

1, Suitable water head: 20-300m

2, Output scope: 50Kw -50Mw

3, Runner diameter : 35cm -250cm

4, Runner material: stainless steel

5, Arrangement type: Vertical and Horizontal

2, Pelton Turbine

 Pelton turbine suit to water head 100 to 1000 meters and with certain small

flow. It could be a vertical and horizontal arrangement, with nozzle numbers from one to six.

Pelton turbine with the feature of wide flow high-efficiency region.

It could start a turbine with 10% of the rated flow.

Pelton turbine with one or two nozzles usually adopts horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement.

Pelton turbine units are widely used in mountain areas all over the world and are well known for their simple structure, less investment, high efficiency, and reliable long service life.

1, Suitable water head: 80-1000m

2, Output scope: 50Kw -20Mw

3, Runner diameter: 55cm -230cm

4, Runner material:cast or forged stainless steel

5, Arrangement type : Vertical and Horizontal

6, Nozzle numbers: 1-6

3, Kaplan turbine

Kaplan turbine is a kind of turbine suited to low water heads 3-45 meters, and with a certain big flow, normally divided into fixed blades and adjustable blades turbine.

The main components include a runner, draft cone, water chamber, guide vane, bearing, and main shaft.

The spiral case could be steel or concrete.

The runner diameter we can manufacture is from 80cm to 4 meters, with a rated output of 50Kw to 20Mw.

Turbine units normally have vertical shaft arrangements.

Generators equipped with the same or different shafts, with Anyway, they will share the same rotating speed.

If specially required, a speed increase gear could be equipped between the turbine and generator in order to smaller the generator size.

1, Suitable water head : 3-45m

2, Output scope: 100Kw -30Mw

3, Runner diameter : 80cm -400cm

4, Runner material: stainless steel

5, Arrangement type: Vertical

4. Turgo Turbine

 Turgo turbine is a type of Impulse turbine that needs less water head than a Pelton turbine, transfers the water dynamic energy through the nozzle, impacts on the Turgo runner, and then drives the generator transfer to electrical energy.

The main difference between the Turgo turbine and the Pelton turbine is the angle of the runner center line and jet center line.

Turgo turbine suit to 30-400meter water head, and water flow 30L /s -2000L/s, and output range from 10Kw to 3200Kw; runner diameter from 32cm to 80cm.

Turgo turbines are designed as horizontal structures, with less investment, high efficiency, and reliable long service life.

1, Suitable water head: 30-400m

2, Output scope: 10Kw -3200Kw

3, Runner diameter : 32cm -800cm

4, Runner material: cast or welded stainless steel

5, Arrangement type: Horizontal

6, Nozzle numbers: 1-2

Generator

Hydro turbine generator is droved directly or indirectly by hydro turbine.

The rotating speed is less than 1500r/min, with horizontal and vertical arrangement.

Excitation mode with brushless and static silicon type.

Components include stator, rotor, base frame, bearing, excitation motor, or collecting ring.

The outlet voltage is from 400V to 13.8KV, and the frequency could be 50Hz or 60Hz, with output from 50Kw to 50Mw.

Our generators are high efficiency, reliable, manufactured, and tests all follow related IEC standards.

1, Frequency: 50 or 60Hz

2, Voltage scope: 0.38-13.8KV

3,  Arrangement: vertical and horizontal

4,  Speed scope: 93.75-1500r/m

5, Power factor:  0.8 – 1

6 Insulation Level: F/F

7, Output scope: 50Kw- 50Mw

Suneco Hydro turbine is a Comprehensive and professional solution in small hydropower generation with a tradition of over 40 years in China.

Our factory was founded in 1983, we produce water turbines from 20KW to 10MW for one single turbine.

At present, we offer a complete range of turbines: Kaplan, Pelton, Francis, Turgo, and Tubular turbines covering all possible sites from low heads starting somewhere around 1,5 – 2 m upto high heads reaching some 600 m. The flow variation is very wide too, from 10 L/s up to 100.000 L/s.

We are specialists in Small Power Plants so our maximum output limit is 10.000 KW.

First-class quality product is appraised by our users. we actively advocate market-oriented, technology-leading, innovation as a means to explore the domestic and overseas markets.

Our service is:
Inquiry response: Your inquiries will be replied in 24 hours
Delivery time: 95 days for the small turbine from 320kw.
We warmly welcome you to visit us and send an email to us to inquire about our small hydro turbine.

We are a good quality supplier of Tubular Turbine Generator and Kaplan Hydro Turbine From China

We bought two Vertical Hydro Turbines from Suneco Hydro Hydro Turbine in 2014, The design looks very good and like European style, and they perform very well now too

—— Erick–From Sweden

I ordered one 100KW water turbine from Suneco Hydro in 2012, it is connected to the grid, and now it works well in very low noise and high efficiency

—— Silence–South Africa

We started to do small hydropower turbines with Suneco Hydro in 2010, its turbines work very well, it provide electricity to a remote area for the local villagers.

—— Tina—-Madagascar

Our factory was founded in 1983 and is an enterprise of research and development, production, and sales of Hydraulic turbines and Packing machines in China.

Suneco Hydro Turbine design and manufacture pico and micro and small hydro turbine generator, These micro-hydro turbines is a favorite for overseas clients.

Till now Suneco hydro turbine built many micro and small hydropower plants overseas, for the mini and micro hydro power turbines, Most of the river is situated in the canyon, however mini and micro hydro power turbine generators can be installed in the canyon, between the creek, it is easy to find a waterfall to build these hydropower plants.

The powerhouse will be selected as a safe place to protect the hydro turbine from getting wet.

These models’ small hydro turbine 20KW.30KW.50KW.75kw.100KW.125kw.160kw.and 200KW is suitable for these project sites.

It is our main popular water turbine for the domestic and overseas markets.

We now manufacture mini & micro and small hydro turbines from 20KW to 10MW for one single hydro turbine generator.

We can design and install hydropower plants for our clients.

We have been producing this small water turbine generator for over 50 years.

Now we become a good solution for hydro power plants around the world.

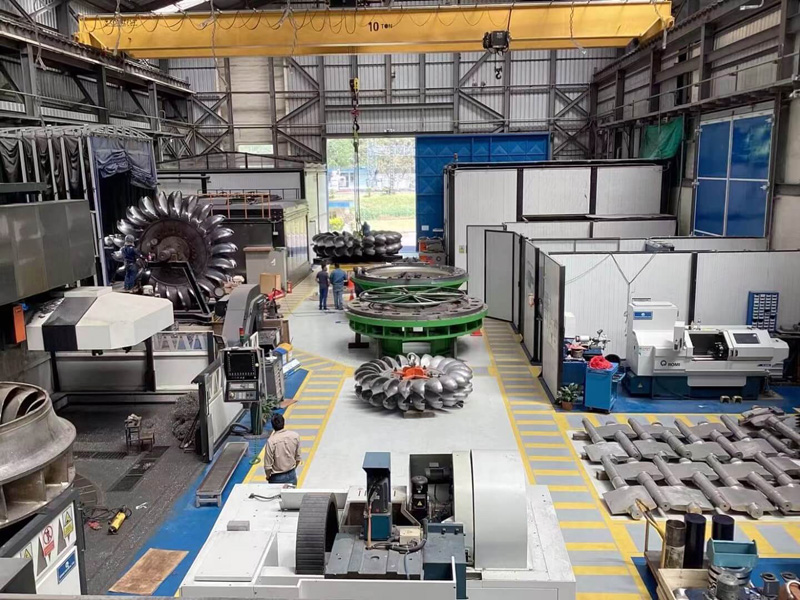

Our Company is a leading enterprise with hi-tech and advanced equipment manufacturing in hydraulic generators.

The main large heavy equipment are: 16m,12m, 8m, 7m, 6.3m CNC vertical lathe; 14m,10m,9.3m,8m CNC horizontal lathe; φ250, tree-axis four-axis CNC boring machine(used in rotor blade processing), 2 sets of German-CNC Machining Center.

3 CNC gantry milling bed, φ100, φ80 radial drill, 800T hydraulic press, 800T puncher, 100tons and 75 tons

cranes, high precision universal grinding machine, CNC EDM cutting machine, 3m NC length measuring

the instrument,11mx7mx4.5m annealing furnace, and several large high-precision and advanced equipment.

Suneco Hydro can provide customers with the following products –

• Pelton turbine unit of runner diameter in 0.32m-2.75m and the capacity to 30MW below.
• Francis turbine unit of runner diameter of 0.42m-5.0m and capacity of 100MW below.
• Axial turbine unit of runner diameter in 0.80m-8.0m and the capacity to 50MW below
• Tubular turbine unit of runner diameter of 1.80m-8.0m and a capacity of 50MW below.
• Auxiliary equipment with the valve unit, excitation devices, and metal structure supporting in use of

         the hydropower station.

• The technological transformation of various types of power plant mechanical and electrical equipment

First-class quality product is appraised by our user.

We actively advocate market-oriented, technology-leading, innovation as a means to actively explore the domestic and overseas markets.

Now our hydro power turbines are sold to over 35 countries they are including  Lao.PDR, Albania, Chile South Africa, and all over the world.

We warmly welcome your inquiries regarding our micro and small hydropower turbines and generators and look forward to getting more improvements by cooperating with you in the future.

Our improvement will bring more efficiency and benefits for you.

We warmly welcome you to visit our factory.
